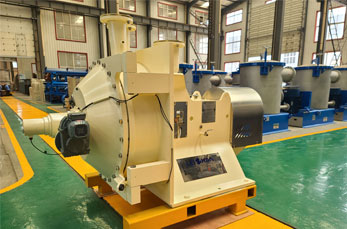

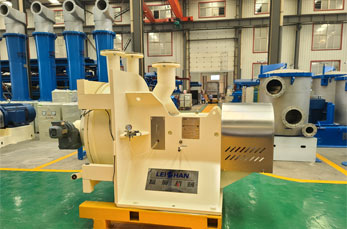

RF Series Double Disc Refiner

The machine is used for pulping, improving slurry beating degree to meet the paper making needs, widely used in all kinds of paper production line.

Easy ways to get the answers you need.

Service Online

+86-371-55129198, +86-13783579051

leizhanmachine@gmail.com

+86-371-86138029

+86-371-55129198, +86-13783579051

leizhanmachine@gmail.com

+86-371-86138029

DD Series Double Disc Refiner

Features

1. Mainly used for pulping,improving slurry beating degree to meet the paper making needs.

2. It can be installed variety tooth refiner plate. Suitable various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp etc.

3. Adopt constant power control system, beating effect is stable.

4. Accurate retract mechanism, easy to control, the beating effect is good.

Technical Data

Type	RF20	RF26	RF34	RF42	RF52
Disc diameter (mm)	20-24	26-30	34-38	42-48	52-58
Range of op.consistency (%)	3.5-6.0
Min.flow (L/Min 4%)	400	700	1400	2200	6000
Max.flow(L/min 4%)	2400	4500	9000	16000	22000
Max.power(KW)	315	500	900	1700	3000

Working Principle

RF Series Double Disc Refiner can be installed variety tooth refiner plate. Suitable various raw materials such as wood pulp, mechanical pulp , chemical pulp , waste paper pulp etc.

Services

service Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
