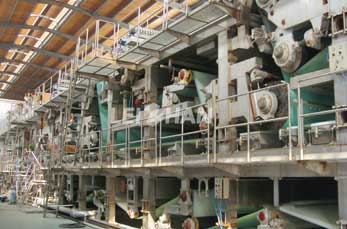

The 240tpd kraft liner board paper machine is composed of cylinder forming part, press part, drying part and reeling part. The paper machine manufacturing process is as follows.
Cylinder forming unit (5 φ1800 cylinder mould), φ800 vacuum return roll, one vacuum press (φ1000/φ950), two large-diameter roll presses (φ1350/φ1350), 24 sets of φ1800 drying cylinders (8+8+8), sizing machine (φ1000/φ1005), 12 sets of φ1800 drying cylinders, two-roll calender (φ700/φ700), horizontal winder, frame rewinder
Raw material: wood pulp/ waste kraft paper bag
Output paper: kraft liner, duplex board paper
Trimmed width: 4300mm
Basis weight: 100-300g/㎡
Capacity: 240t/d
Design speed: 250m/min
Working speed: 200m/min
Crawling speed: 25m/min
Gauge: 5400mm
Leizhan company supply whole set kraft liner board paper making line machine, welcome to contact us for more details. Email address: leizhanmachine@gmail.com.
This line includes Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper (such as waste packing box,waste office paper and so on) turn to fine pulp for paper forming on the paper machine.
Supply the most current design and technical expertise; Supply parts sales and training service far beyond the initial sale; Your profits with quality parts and expert service.
You can get the price list and a Leizhan representative will contact you within one business day.
