Solutions

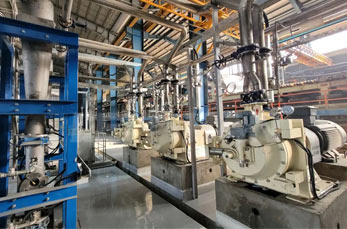

When customer use 100% old newspapers, old writing paper as raw materials to make culture paper or tissue paper, waste paper deinking line machine is important equipment to make paper pulp. Full set waste paper deinking line include conveying machine, pulper machine, screening machine, cleaner machine deinking machine, thickener equipment and refiner machine, etc.
Chain Conveyor: working width: B=1400mm, total length of chain plate: L=26m
Drum Pulper: Ø2750mm, C=3~5%
High Density Cleaner: Q=4500~5800l/min, C=3～5%, P= 0.2～0.5MPa
Medium Consistency Coarse Screen: A=0.91㎡, h=1.8mm, C=3~4%
Reject Separator: Ø380mm, C=1~2%, Ø4mm
Low Density Cleaner: 400 l/min, C=1.0%
Medium Consistency Fine Screen: f=0.15mm, C=0.9~1%

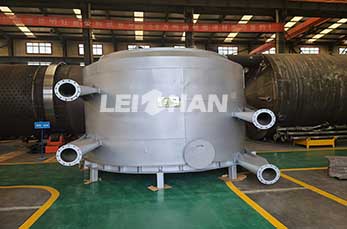

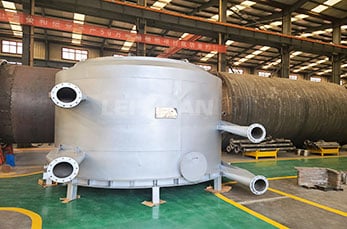

Flotation Deinking Machine: Q=624m³/h, C=0.8～1.2%
High Speed Stock Washer: L=2000mm, C=0.8~1%
Double Disc Refiner: D=600mm, C=3~5%
Inflow Pressure Screen: S=0.3mm, C=0.4~0.6%
Full set waste paper deinking line machine can be provided by our compang, welcome to contact us for more details. Email address: leizhanmachine@gmail.com.
This line includes Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper (such as waste packing box,waste office paper and so on) turn to fine pulp for paper forming on the paper machine.
Supply the most current design and technical expertise; Supply parts sales and training service far beyond the initial sale; Your profits with quality parts and expert service.
You can get the price list and a Leizhan representative will contact you within one business day.
