Solutions

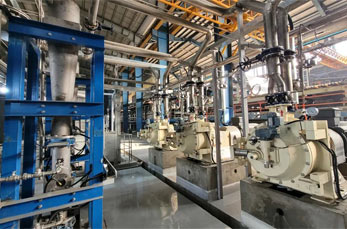

One of our customers using 100% newspapers, old writing paper to make recycled cultural paper. According to customer’s requirements, our engineers have developed 80tpd waste paper deinking pulping line solution.
Chain Conveyor: working width: B=1400mm
Drum Pulper: Ø2750mm, C=3~5%
High Density Cleaner: Q=4500~5800l/min, C=3～5%
Middle Consistency Coarse Screen: A=0.91㎡, h=1.8mm, C=3~4%
Reject Separator: Ø380mm, C=1~2%
Low Density Cleaner: 400l/min, C=1.0%
Fine Screen: f=0.15mm, C=0.9~1%
Flotation Deinking Machine: Q=624m³/h, C=0.8～1.2%
High Speed Stock Washer: L=2000mm, C=0.8~1%
Screw Press Washer: D=600mm, C=10~14%
Heater: T=80~130℃, C=25~35%
Double Disc Refiner: D=600mm, C=3~5%
Inflow Pressure Screen: A=1.8㎡, S=0.3mm
Unit waste paper deinking line machine can be provided by our company. If you also want to know more about 80tpd deinking line machine, welcome to contact us. Email address: leizhanmachine@gmail.com.
This line includes Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper (such as waste packing box,waste office paper and so on) turn to fine pulp for paper forming on the paper machine.
Supply the most current design and technical expertise; Supply parts sales and training service far beyond the initial sale; Your profits with quality parts and expert service.
You can get the price list and a Leizhan representative will contact you within one business day.
