Solutions

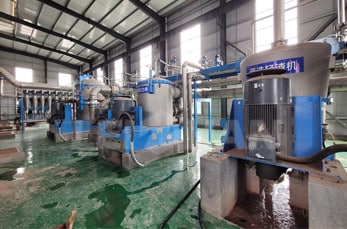

LOCC is one of the most common raw materials used to produce packaging paper. Since there are many impurities in LOCC, in order to ensure the quality of the final paper product, these impurities need to be removed step by step in the pulping line by stock preparation machine. A complete LOCC stock preparation machine include conveying machine, screening machine, cleaning machine and refining machine, etc. According to customer’s requirements about capacity of 225t/24h, the process we ultimately developed is as follows.
Chain Conveyor: working width: B=1600mm
D Type Hydrapulper: 25m³
Sediment Well: diameter 1400mm
Hydrapurger: 3m³
Drum Screen: Ø1500mm, 6000～8000L/min
Ragger: 0~60m/h
Rope Cutter: cutting the rope with a maximum diameter is 600mm
Grapple: 0.08m³
High Density Cleaner: Q=8000～12000l/min, C=3～5%
Middle Consistency Coarse Screen: A=1.51m², H=2.4mm
Light Impurity Separator: Volume 1.5m³
Reject Separator: Ø380mm
Low Density Cleaner: 450l/min, C=1.5~1.8%
Fine Screen: A=3.0m², s=0.22mm
Disc Thickener: fan disk diameter Ø3500 mm
Double Disc Refiner: Ø660mm
A complete LOCC stock preparation machine can be provided by Leizhan Company. Welcome to contact us. Email address: leizhanmachine@gmail.com.

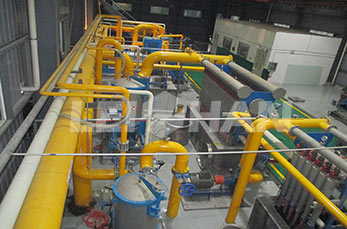

This line includes Chain Conveyor, Drum Pulper, D Type Hydrapulper, Mid Consistency Pressure Screen, Double Disc Refiner, Inflow Pressure Screen, and so on. Paper pulp machine used to make waste paper (such as waste packing box,waste office paper and so on) turn to fine pulp for paper forming on the paper machine.
